2m3/min 7 bar Yangdong engine Diesel Screw Air Compressor Portable Diesel Engine Driven Air Compressor

Name: 2m3min 7 bar Yangdong engine Diesel Screw Air Compressor Portable Diesel Engine Driven Air Compressor
Brand: ROYAL MACHINERY
Price: 3700 USD

Best 2m3/min 7 bar Yangdong engine Diesel Screw Air Compressor Portable Diesel Engine Driven Air Compressor wholesale

Brand Name : ROYAL MACHINERY

Model Number : 30C

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : usd3700/unit

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500units/month

Delivery Time : 5-20days

Packaging Details : plywood case

name : diesel engine screw air compressor

power : 40kw

air flow : 3.5m3/min

Contact Now

2m3/min 7 bar Cummins engine Diesel Screw Portable Air Compressor Portable Diesel Engine Driven Air Compressor

40KW small diesel screw air compressor
Main parameters
Compressor model No.	40MCG-7 (stationary with cover)	40MCN-7(stationary without cover)	40MCY-7(with cover and wheels)
Product name	Diesel engine screw air compressor	Diesel engine screw air compressor	Diesel engine screw air compressor
Air capacity	4.0m3/min	4.0m3/min	4.0m3/min
Rated pressure	7bar	7bar	7bar
Lubrication oil volume	16L	16L	16L
Oil separator tank volume	16L	16L	16L
Compression	Single stage	Single stage	Single stage
Way of cooling	Air	Air	Air
Noise	80±5	80±5	80±5
Diesel Eninge	Diesel Eninge	Diesel Eninge	Diesel Eninge
Diesel engine brand	Xichai	Xichai	Xichai
Engine No.	4DW91-50GBG3U-YM10	4DW91-50GBG3U-YM10	4DW91-50GBG3U-YM10
Speed	2500RPM	2500RPM	2500RPM
Power	37KW	37KW	37KW
Lubrication oil volume	6L	6L	6L
Fuel tank volume	65L	65L	65L
Diemension and Sizes	Diemension and Sizes	Diemension and Sizes	Diemension and Sizes
Length(mm)	1800	1800	2400
Width(mm)	1040	960	1330
Height(mm)	1300	1300	1550
Weight(kg)	750	650	860
Outlet Dia.	G1"	G1"	G1"

2m3/min 7 bar Yangdong engine Diesel Screw Air Compressor Portable Diesel Engine Driven Air Compressor

Full range of diesel screw air compressor parameters:

Model No.	Wheels	Air flow m3/min	Pressur Mpa	Power	Engie
40MCN-7	stationary no cover	4.5	0.7	37kw	Xichai China
40MCG-7	stationary with cover	4.5	0.7	37kw	Xichai China
40MCY-7	staionary with cover and two wheels	4.5	0.7	37kw	Xichai China
58MCY-8	2 wheels	7.0	0.8	58kw	Yuchai China
110MCY-8	4 wheels	13.0	0.8	110kw	Yuchai China
110MCY-10	4 wheels	12.5	1.0	110kw	Yuchai China
110MCY-14.5	4 wheels	11.0	1.45	110kw	Yuchai China
118MCY-15	4 wheels/ 2-stage	12.0	1.5	110kw	Yuchai China
141MCY-15	2 wheels	14.0	1.5	141kw	Yuchai China
141MCY-15	4 wheels	14.0	1.5	141kw	Yuchai China
158MCY-17	2 wheels	15.0	1.7	162kw	Yuchai China
158MCY-17	4 wheels	15.0	1.7	162kw	Yuchai China
162MCY-17	4 wheels/ 2-stage	16.0	1.7	162kw	Yuchai China
186MCY-18	4 wheels	17.0	1.8	191kw	Yuchai China
192MCY-17	4 wheels	19.0	1.7	191kw	Yuchai China
200MCY-21	4 wheels/ 2-stage	20.0	2.1	191kw	Yuchai China
300MCY-18	4 wheels/ for highland use	25.0	1.8	310kw	Xichai China
300MCY-25	4 wheels/ 2-stage	26.0	2.5	310kw	Xichai China

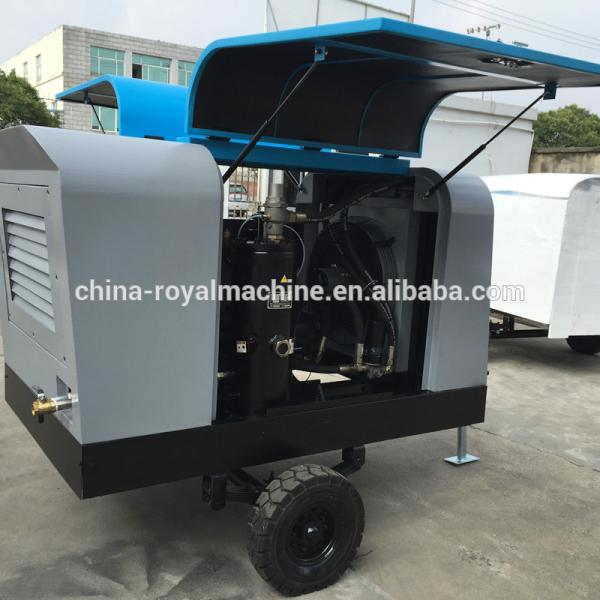

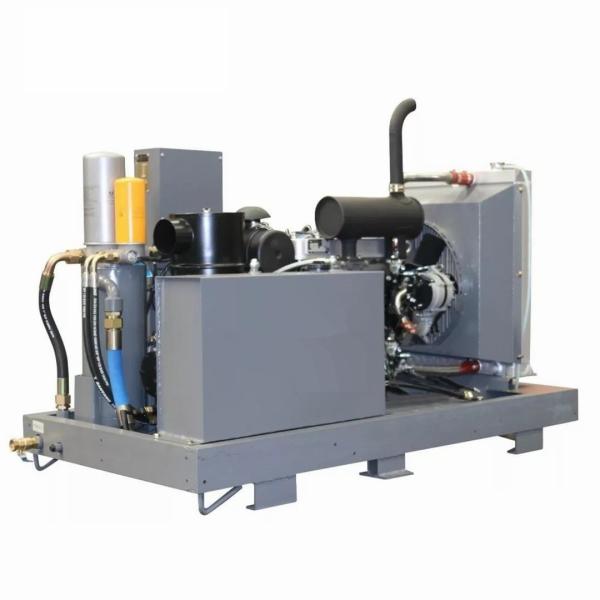

More photos of our diesel driven screw air compressors:

2m3/min 7 bar Yangdong engine Diesel Screw Air Compressor Portable Diesel Engine Driven Air Compressor

Welcome to contact with us for more details, thank you.
